The next-generation high-performance 10 Gigabit switch

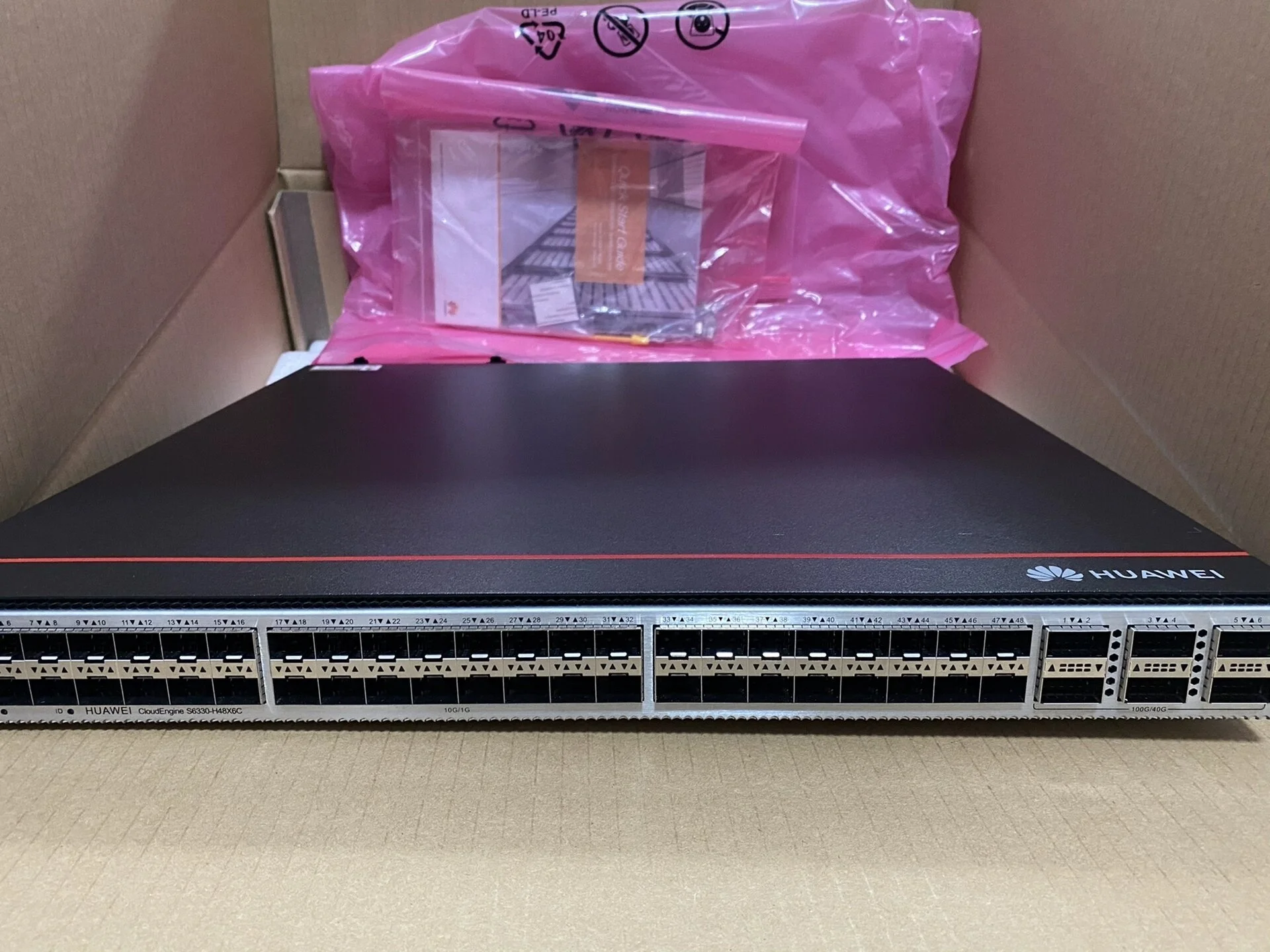

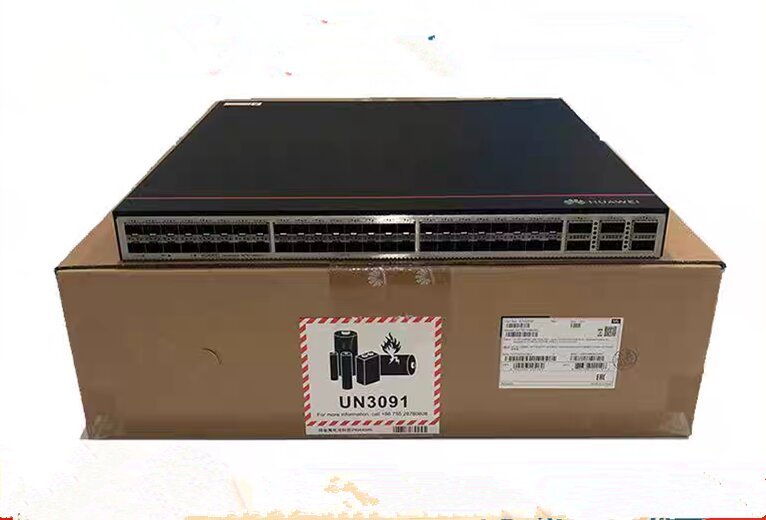

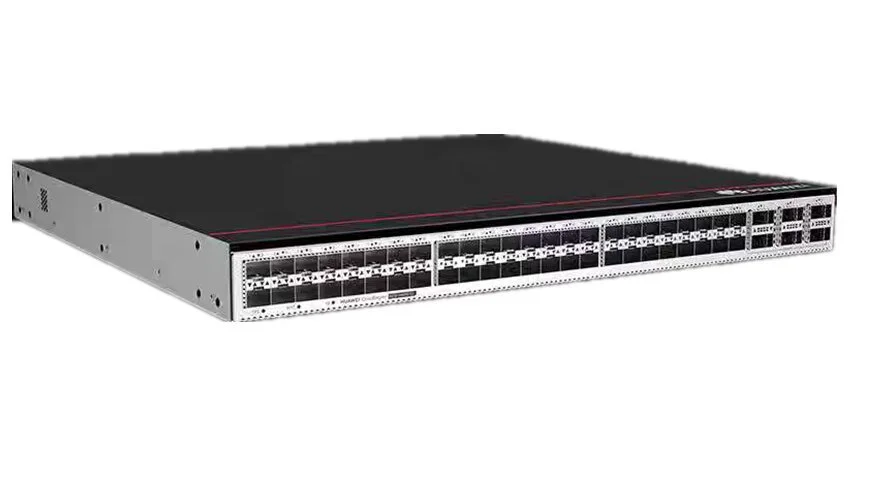

CloudEngine S6730-H48X6C, is Huawei's new 10GE box-type switch designed for modern campus networks and high-density 10 Gigabit access scenarios. This switch boasts superior performance, intelligent operation and maintenance capabilities, and advanced security features, making it widely applicable in the aggregation and access layers of large campus networks or the core of small and medium-sized campuses.
This switch provides 48 10 Gigabit downlink ports and 6 100GE uplink ports, making it ideal for Wi-Fi 6 uplinks. It also supports innovative features such as onboard AC, VXLAN network virtualization, and built-in security probes, providing robust network infrastructure support for future business development.
Product Features
Advanced Layer 3 networking technologies such as VXLAN, EVPN, and MPLS. Supports dynamic routing protocols such as static routing, RIP, OSPF, IS-IS, and BGP, enabling cross-segment/IP subnet communication in large-scale networks.
A packet forwarding rate of up to 1620Mpps ensures non-blocking data exchange. Uplink ports support 40GE by default and can be upgraded to 100GE via license to meet bandwidth requirements in different scenarios.
Supports VXLAN Layer 2/Layer 3 gateways for network virtualization and multi-purpose network functionality. SVF simplifies maintenance and enables cloud-based device configuration, monitoring, and inspection.
Supports Telemetry technology for real-time device data collection and precise network problem localization. Built-in security probes support abnormal traffic detection, encrypted traffic threat analysis, and full-network threat detection.
Technical Specifications Details
Parameter Category Detailed Specifications
Fixed Ports 48 x 10GE SFP+ ports, 6 x 40G/100G QSFP28 ports
Switching Capacity 2.56T/25.6Tbps
Packet Forwarding Rate 1620Mpps

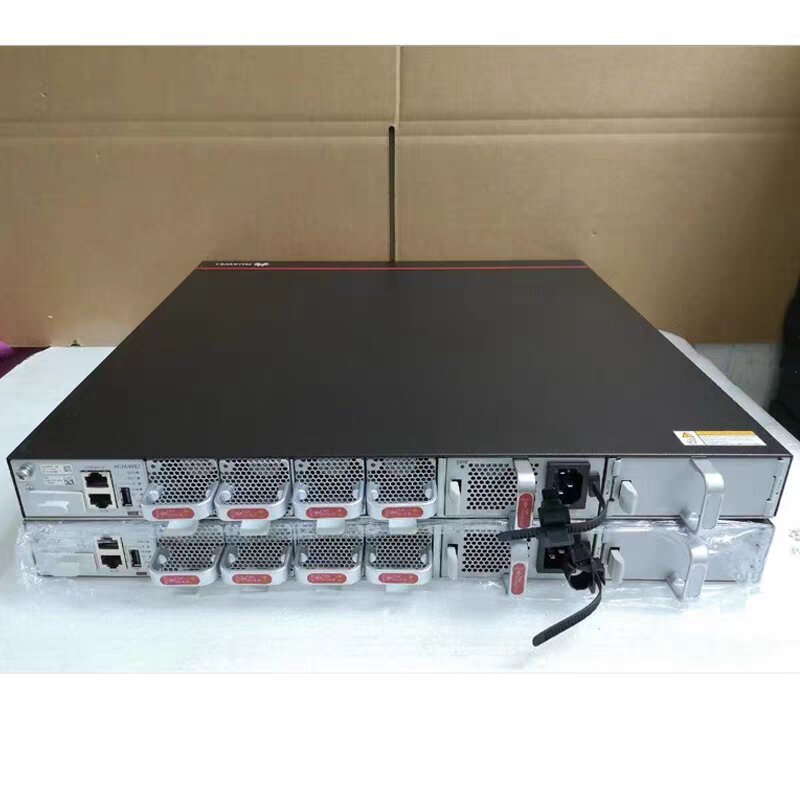

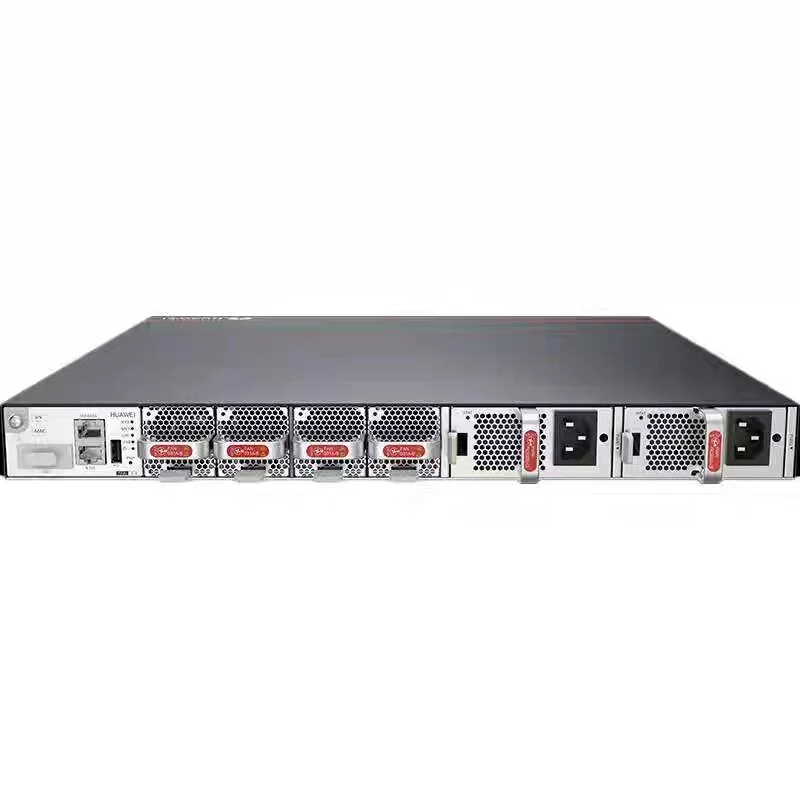

Power Supply Configuration Hot-swappable dual power supplies, supports 1+1 power backup
Management Method Supports Console, Eth management port, and USB interface
