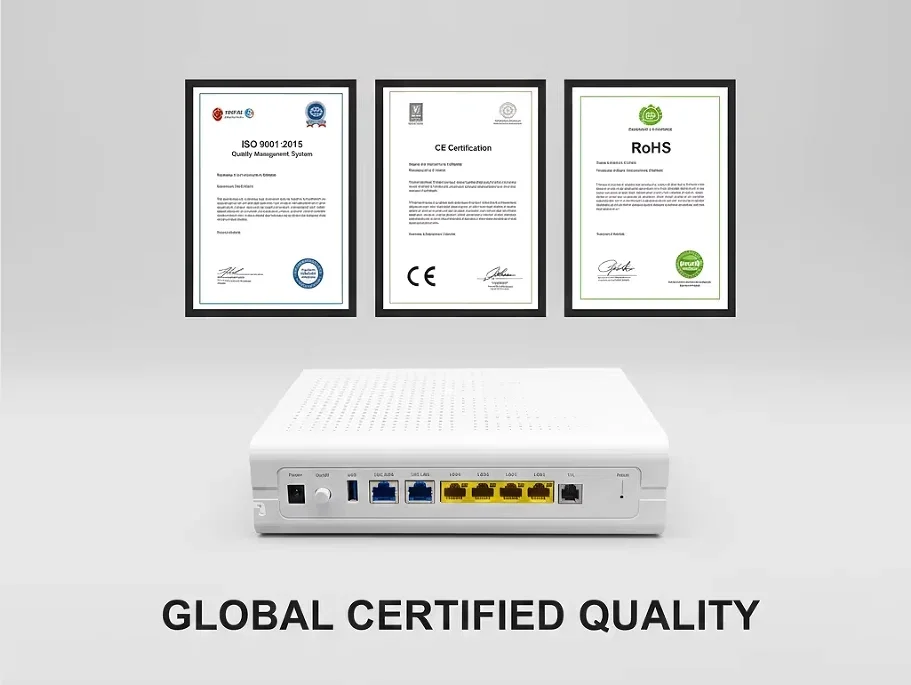

CL-531X7 is an XGS-PON optical network terminal specifically designed for FTTH-R scenarios. It supports one 10GE WAN interface, one 10GE LAN interface, four GE LAN interfaces, one voice interface, one USB 3.0 interface, WiFi7+Mesh function, and L3 function, helping users build smart home networks. Provide users with rich, personalized, convenient and comfortable voice (VoIP), video (IPTV), high-speed Internet access and other services.
Technical Parameters
| Category | Specifications |
|---|---|
| PON Interface |
- GPON interface (NNI) / 1 XGS-PON interface - Optical port: Class N1 Optical System - Optical connector: SC/APC - Maximum Receive Sensitivity: -8 dBm - Minimum reception sensitivity: -28 dBm - Wavelengths: US 1270 nm / DS 1577nm - Speedtest DS/US =10Gbps/10Gbps - Support ITU-T 984.X / ITU-T G.988 Standard - Authentication: SN / LOID / Plomb password - Support OLT: HUAWEI / ZTE / Fiberhome / NOKIA |
| POTS | - 1×POTS Port, VoIP interface |
| Ethernet Port |
- WAN Type: PoE / Static IP / PPPoE / Bridge - Protocols: IPv4/ IPv6 dual stack - Support VLAN 1-4094 - IGMP v2 (RFC 2236) & IGMP v3 (RFC 3376) - Support IGMP Snooping & Proxy - Call waiting/Inconditional Call Forward/Call Forward Busy/Call Forward No Reply/Third-party calls - G711A/G711U/G729/G722 - SDP protocol (RFC 2327 & RFC 4566) - T.30/T.38/G.711 FAX mode - DTMF/RFC2833 - Application: DDNS/NAT/ VPN/ UPnP/ SNTP - Support WAN/LAN access the Telnet & HTTP - Support Parental Controls - Security: Firewall; IP/ MAC / URL Filter - Support TR-069 Remote Management - IEEE802.11 b/g/ax/be 4x4, MU-MIMO - IEEE802.11 a/n/ac/ax/be 4x4, MU-MIMO (ePA) |
| Wireless Parameters |
- 2.4G: 1376Mbps, 5G: 5764Mbps - 10°interantennals (3DBi) - Enable/Disable Wireless Radio - Support WPA / WPA2 / WPA3 - Support EasyMesh |
| USB port |
- USB3.0 - FTP-based network storage - File/Print sharing based on SAMBA - DLNA DMS/UPnP AV (media server) |
| Chipset | PANASONIC/ZTE |
| CPU Frequency | 1.2GHz Dual core |
| Dimension | 235*170*60mm (L×W×H) |
| Operating condition |
- Operating temp: 0 ~ +40℃ - Operating humidity: 5 - 95% (non-condensed) |
| Power adapter input | 100-240V AC, 50/60 HZ |
| System power supply | 12VDC, 3A |
| Interface | 1*10GE+4*GE+1*FXS+1*USB |
