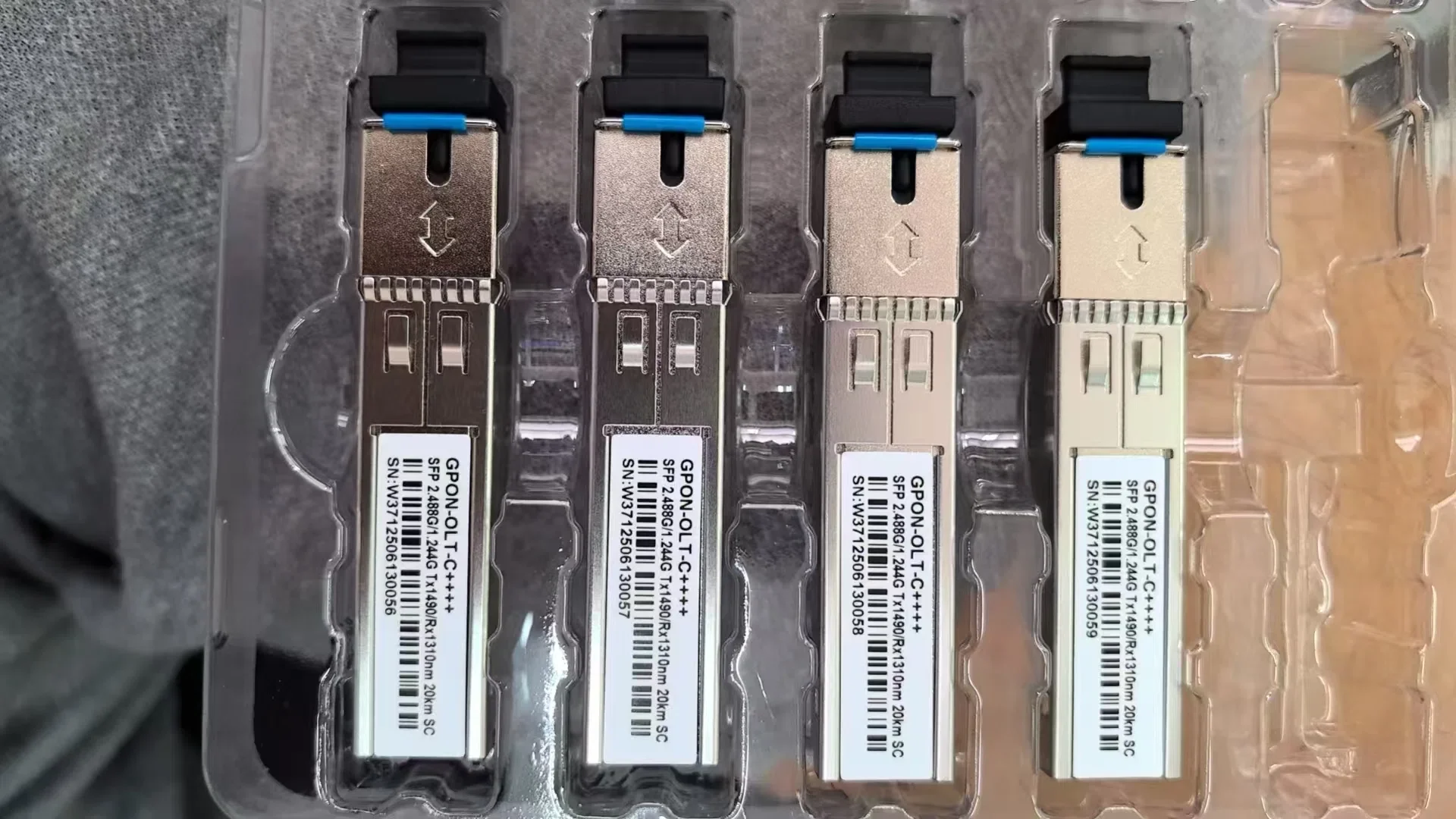

PON SFP C++++ for GPON OLT Optical Transceiver 10db

$19.20

Compliant with ITU-T G.984.x standards and the OMCI protocol stack, it supports remote fault diagnosis and online upgrades. It offers 2.5G downstream/1.25G upstream transmission capabilities, boasting advantages such as high performance, low latency, and stable operation.

Compliant with ITU-T G.984.x standards and the OMCI protocol stack, it supports remote fault diagnosis and online upgrades. It offers 2.5G downstream/1.25G upstream transmission capabilities, boasting advantages such as high performance, low latency, and stable operation.

We are a professional supplier of optical modules. Our C++++ class integrates advanced functions such as automatic discovery, dynamic bandwidth allocation (DBA), and link diagnostics, and supports hot-swappable SFP packaging. The PON module SFP/SFP+ supports a downlink speed of 2.5Gbps and a transmission distance of up to 60km. Transmit power can reach more than 10Db. It is compatible with mainstream equipments such as Huawei and ZTE OLT, Provides a visual configuration interface and detailed diagnostic logs.

Optical Module Specifications
Specification Class C++ ClassD/C+++ Class C++++
Wavelength Tx:1490nm
Rx:1310nm		 Tx:1490nm
Rx:1310nm		 Tx:1490nm
Rx:1310nm
Package Type SFP SFP SFP
Bandwidth rate Tx:2.488Gbit/s
Rx:1.244Gbit/s		 Tx:2.488Gbit/s
Rx:1.244Gbit/s		 Tx:2.488Gbit/s
Rx:1.244Gbit/s
Minimum output power 4.5dBm 6dBm 7dBm
Maximum output power 7dBm 8dBm 11dBm
Maximum Receive sensitivity -32dBm -35dBm -38dBm
Connector type SC SC SC
Transmission distance 20.0km 40.0km 60.0km
Saturated optic power -12dBm -15dBm -18dBm
Maximum spectral ratio 1:64 1:128 1:256
Typical application scenarios FTTH long-distance coverage high-loss environments
