Huawei EA5801E is a compact, high-density, and intelligent box-shaped OLT designed for multi-service access scenarios. It features an open application ecosystem, a minimalist architecture, plug-and-play functionality, and intelligent operation and maintenance. It builds the backhaul network for 5G/6G mobile communications. It supports cloud VR/AR and provides fast access channels for artificial intelligence and big data.

Depth analysis of the advantages of OptiXaccess EA5801E

1. Advanced PON Technology

Dual-mode adaptive: The PON port supports both GPON (2.5G downstream/1.25G upstream) and XG-PON (10G downstream/2.5G upstream) modes, automatically identifying the type of optical module inserted, perfectly supporting on-demand upgrades from GPON to 10G GPON.

High-performance access: A single PON port supports a high splitting ratio of 1:128, with a maximum transmission distance of up to 20 kilometers, providing comprehensive coverage for various physical environments.

2. Powerful Service Bearing Capacity

Full-service access: Perfectly supports high-speed broadband internet access (HIS), voice (VoIP), 4K/8K IPTV, enterprise dedicated lines (E-Line, E-Tree), and other services.

High-quality experience: Built-in intelligent dynamic bandwidth allocation (DBA) algorithm and hierarchical QoS ensure low latency and low jitter, providing quality assurance for applications such as live streaming, online meetings, and cloud desktops.

3. Intelligent Operation and Maintenance

Plug-and-play: Optical terminals (ONT/ONU) support zero-configuration automatic discovery, automatic upgrades, and automatic service provisioning, significantly reducing installation costs and personnel skill requirements.

Visualized operation and maintenance: Through the network management system (U2000 or iMaster NCE), topology management, performance monitoring, alarm management, and PON link diagnostics (optical power detection) can be achieved, improving operation and maintenance efficiency by more than 60%.

Green and energy-saving: Supports intelligent power management, adjusting power consumption based on actual port usage, reducing equipment operating energy consumption.

4. Enterprise-Grade High-Reliability Design

Power redundancy: Supports dual AC or one DC and one AC power redundancy backup (depending on the specific model and power module configuration).

PON protection: Supports protection methods such as Type C (dual upstream backbone fiber protection) and Type B (full backup fiber protection), achieving network reliability of up to 99.999%.

Lightning protection design: Features professional lightning protection design to enhance the equipment's survivability in complex environments.

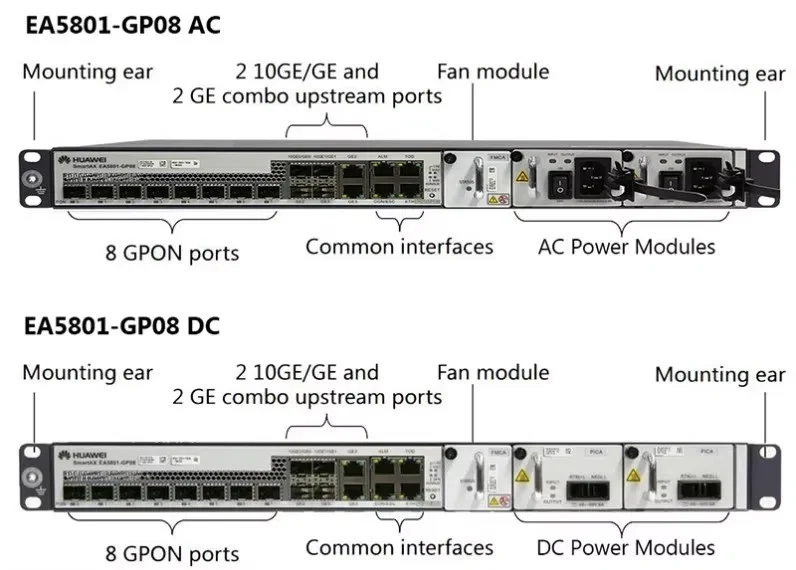

Huawei EA5801E Series OLT Selection Guide
