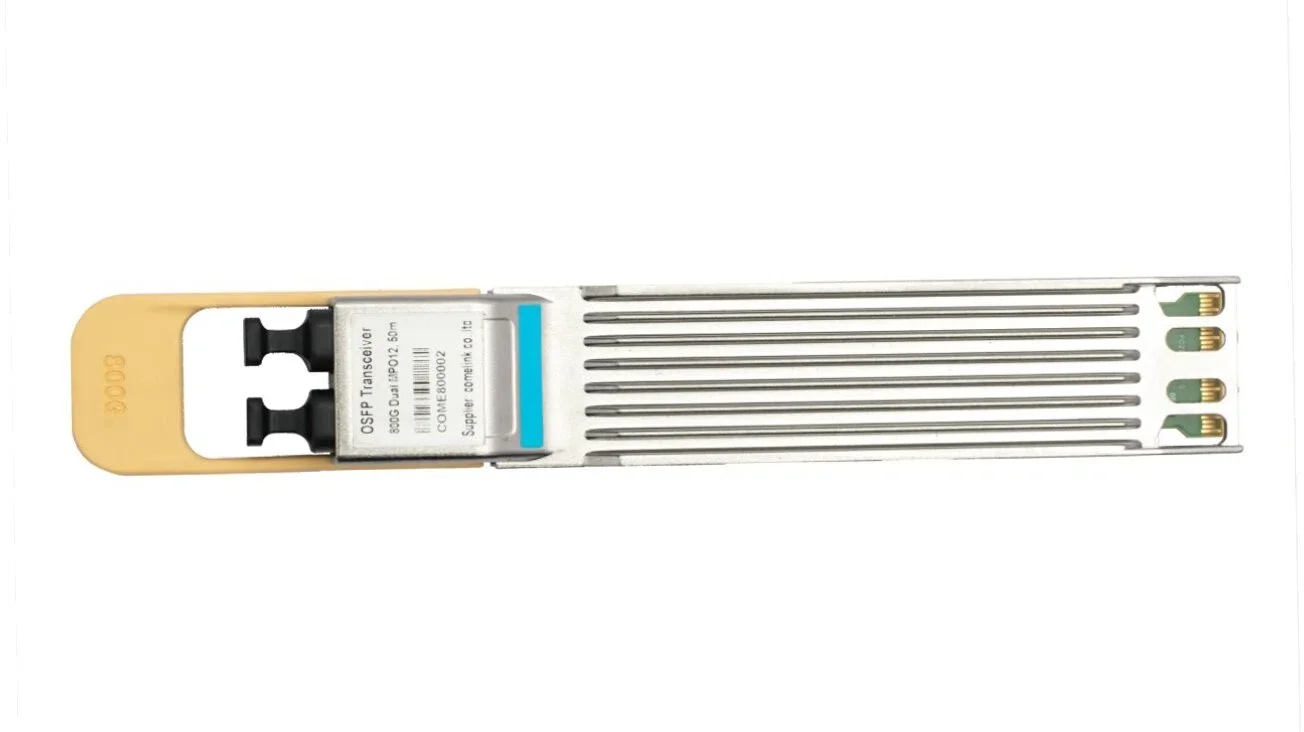

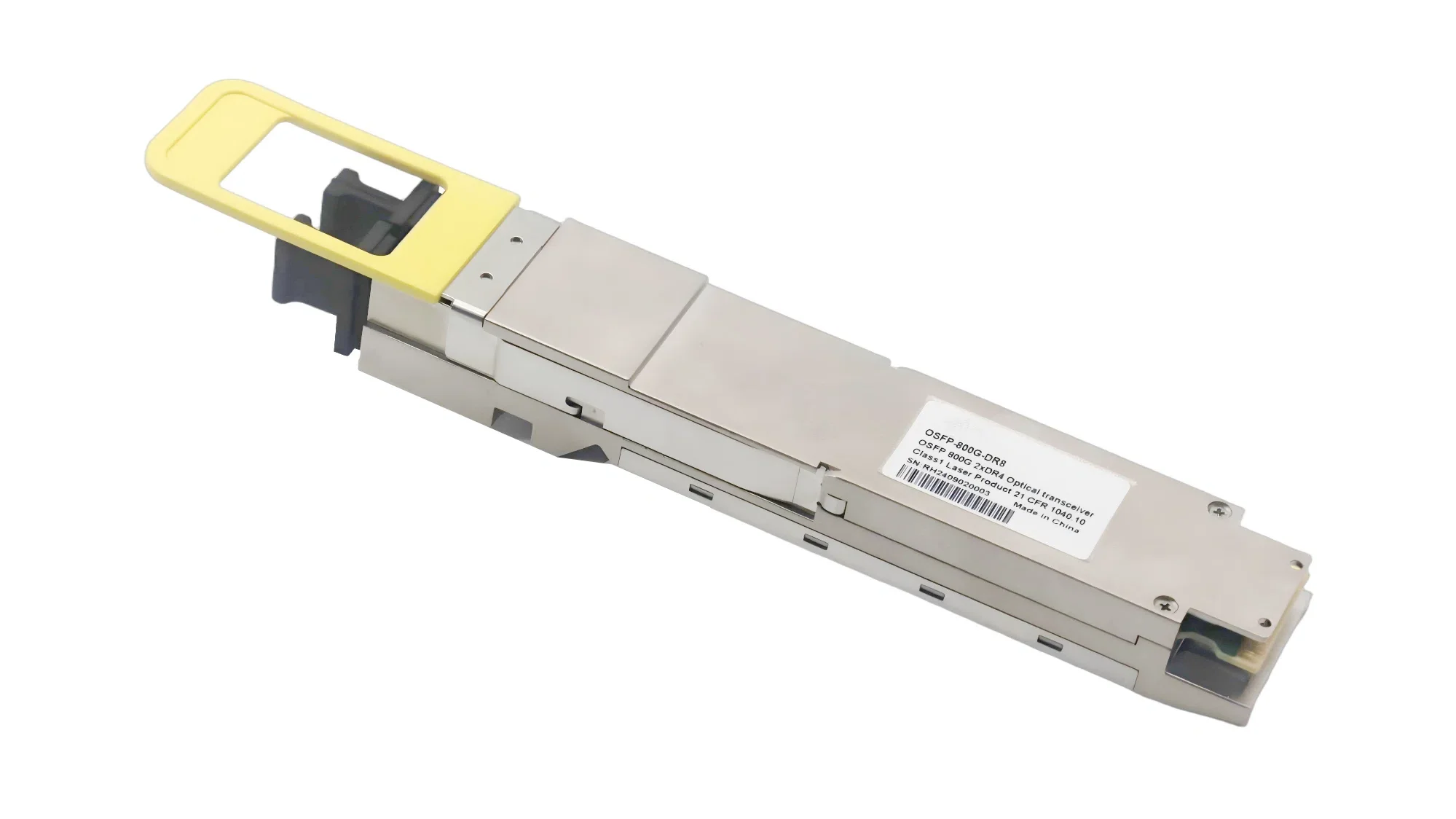

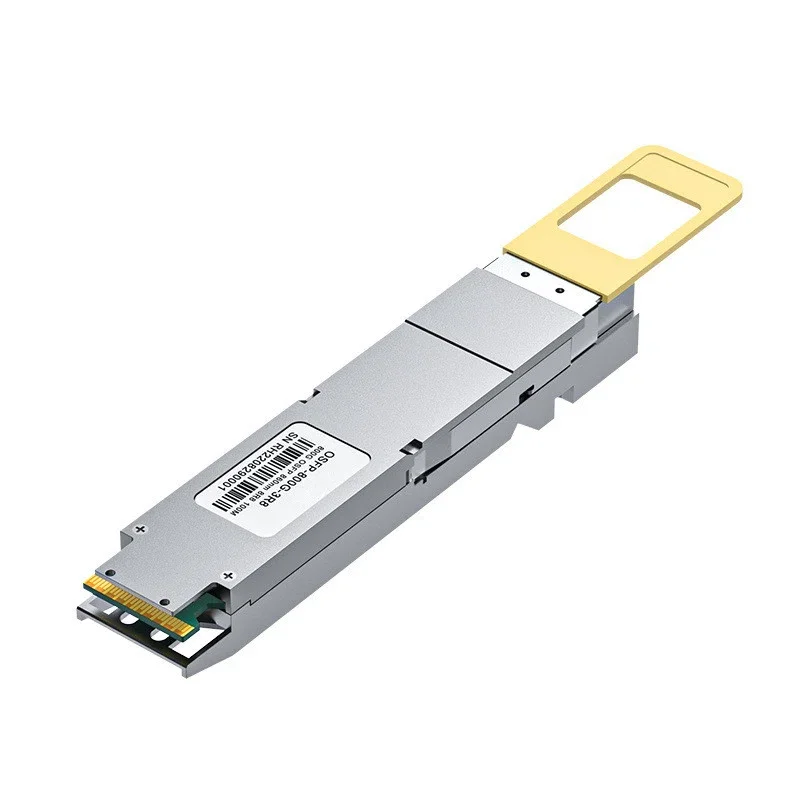

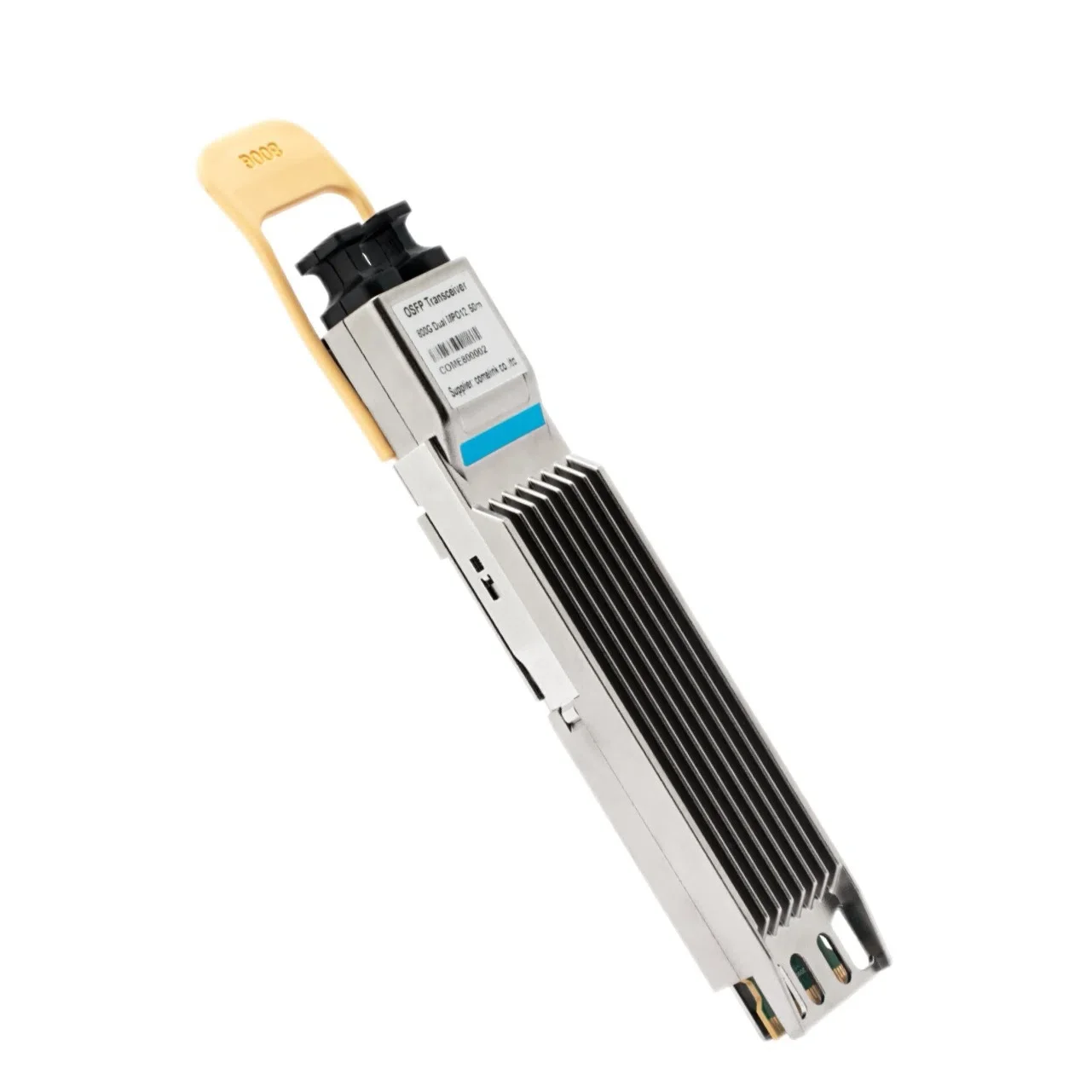

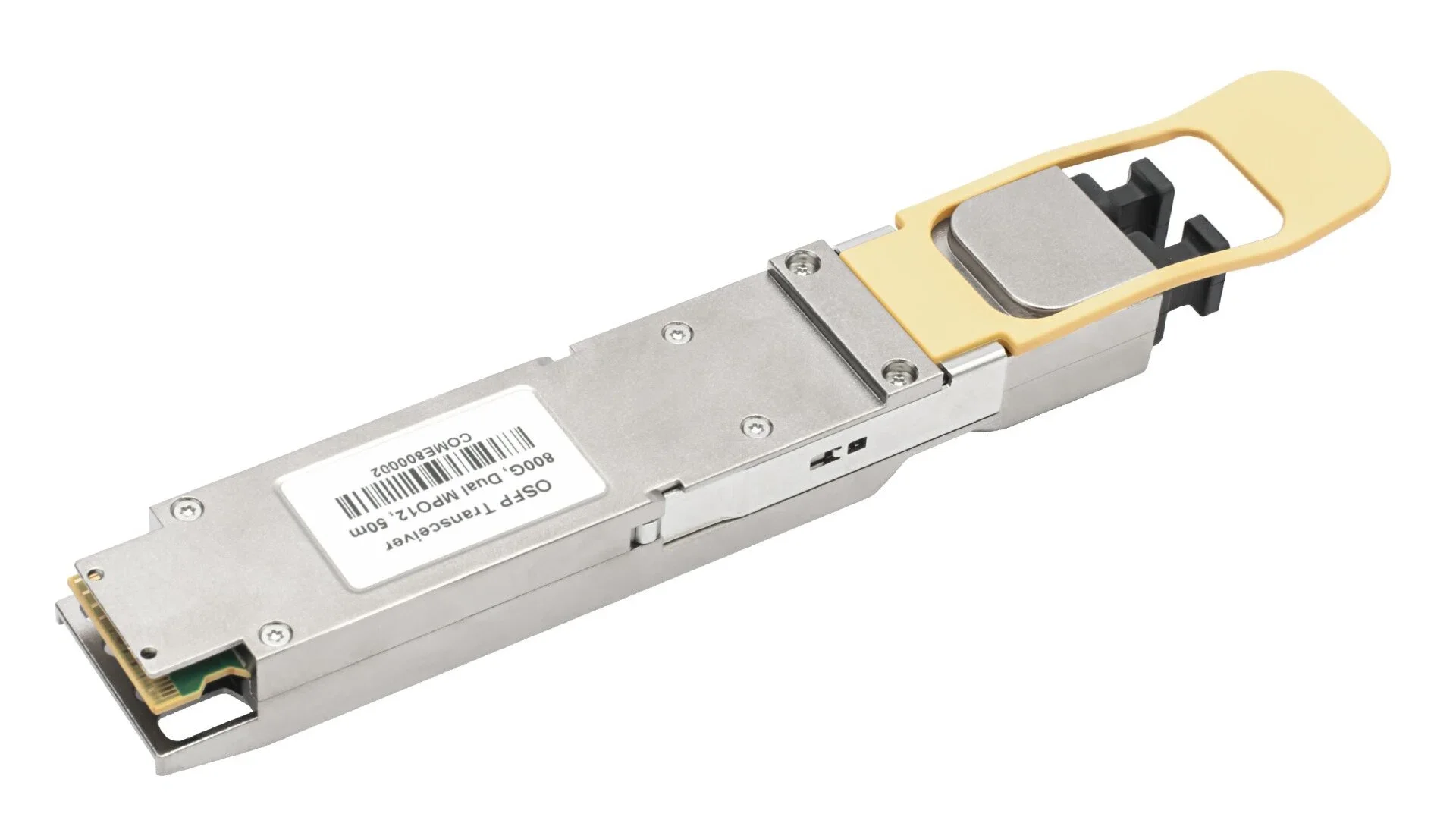

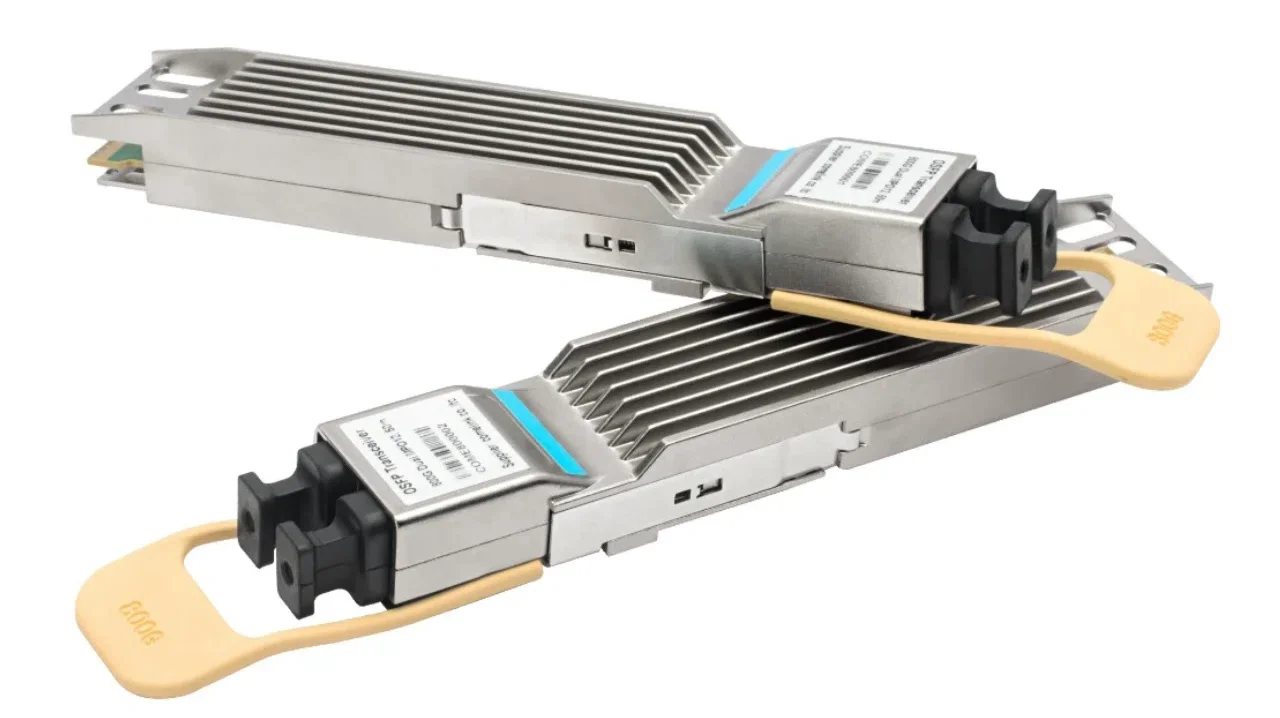

We are professional AI SFP supplier. The 800G optic module adopts MPO connector, supporting transmisison distance of 100M. Built in branded chips ensure stable data transmission, supporting various Ethernet rate protocols compatible with InfiniBand NDR transmission protocol, widely used in data centers, cloud computing, supercomputing centers and other fields.
800 Gigabits module features
Hot-pluggable OSFP form factor
Data Rate 106.25 Gb/s PAM4 per lane
8x106Gbps PAM4 transmitter and PAM4 receiver
Compliant with OSFP MSA, CMIS, and IEEE 802.3
Including SR8 100m, DR8 500m, 2×FR4 2km, 2×LR4 10km

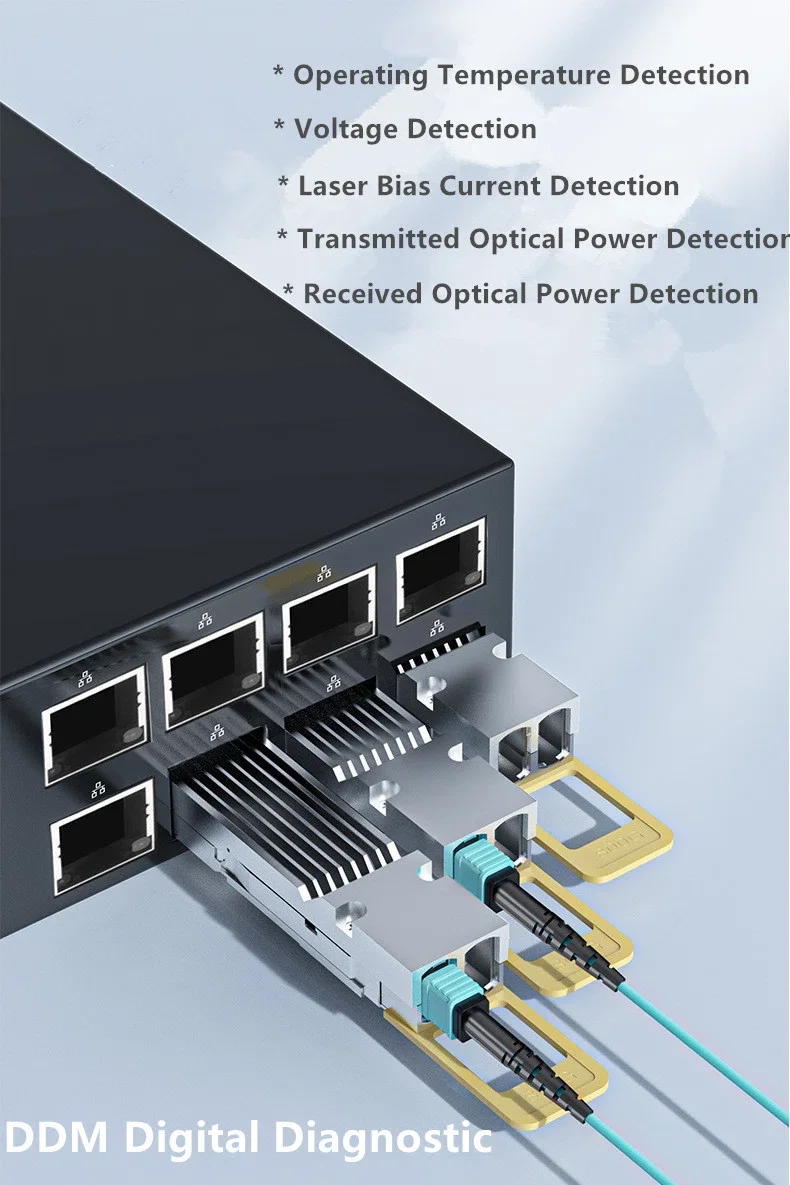

Digital diagnostics functions are available via the I2C interface
low-power consumption
RoHS compliant
OSFP-800G Selection
| Specifications | OSFP-800G-2xSR4 | OSFP-800G-2xDR4 | OSFP-800G-2xFR4 |
|---|---|---|---|
| Part Number | OSFP-800G-2xSR4 | OSFP-800G-2xDR4 | OSFP-800G-2xFR4 |
| Data Rate | 2400Gbps | 2400Gbps | 2400Gbps |
| Supply Voltage | 3.3V | 3.3V | 3.3V |
| Power Consumption | ≤14W | ≤16W | ≤16W |
| Wavelength | 850nm | 850nm | 1271/1291/1311/1331nm |
| Optical Connector | 2xMPO-12/APC | 2xMPO-12/APC | Dual Duplex-LC |
| Component | VCSEL + PIN | EML + PIN | EML + PIN |
| Case Temperature | 0℃ to 70℃ | 0℃ to 70℃ | 0℃ to 70℃ |
| Reach | 60m(OM3)/100m(OM4) | 500m | 2km |
| Protocol | Ethernet,IB | Ethernet,IB | Ethernet,IB |
