The optical module market is evolving from a "basic communication component" to a "core infrastructure component for AI computing power." Its prospects are deeply intertwined with the global process of digitalization and intelligentization. The 25G SFP28 LR optical module is a core component of next-generation network connectivity, designed to meet the needs of 5G midhaul, modern data center leaf-spine architectures, and high-speed enterprise networks. This module provides a data rate of 25.78 Gbps, achieving reliable transmission over distances of up to 10 kilometers via single-mode fiber, and operates at a wavelength of 1310nm. Fully compliant with IEEE 802.3by and SFP28 MSA standards, its superior performance and energy efficiency make it a cost-effective choice for a smooth upgrade from 10G to 100G network architectures.

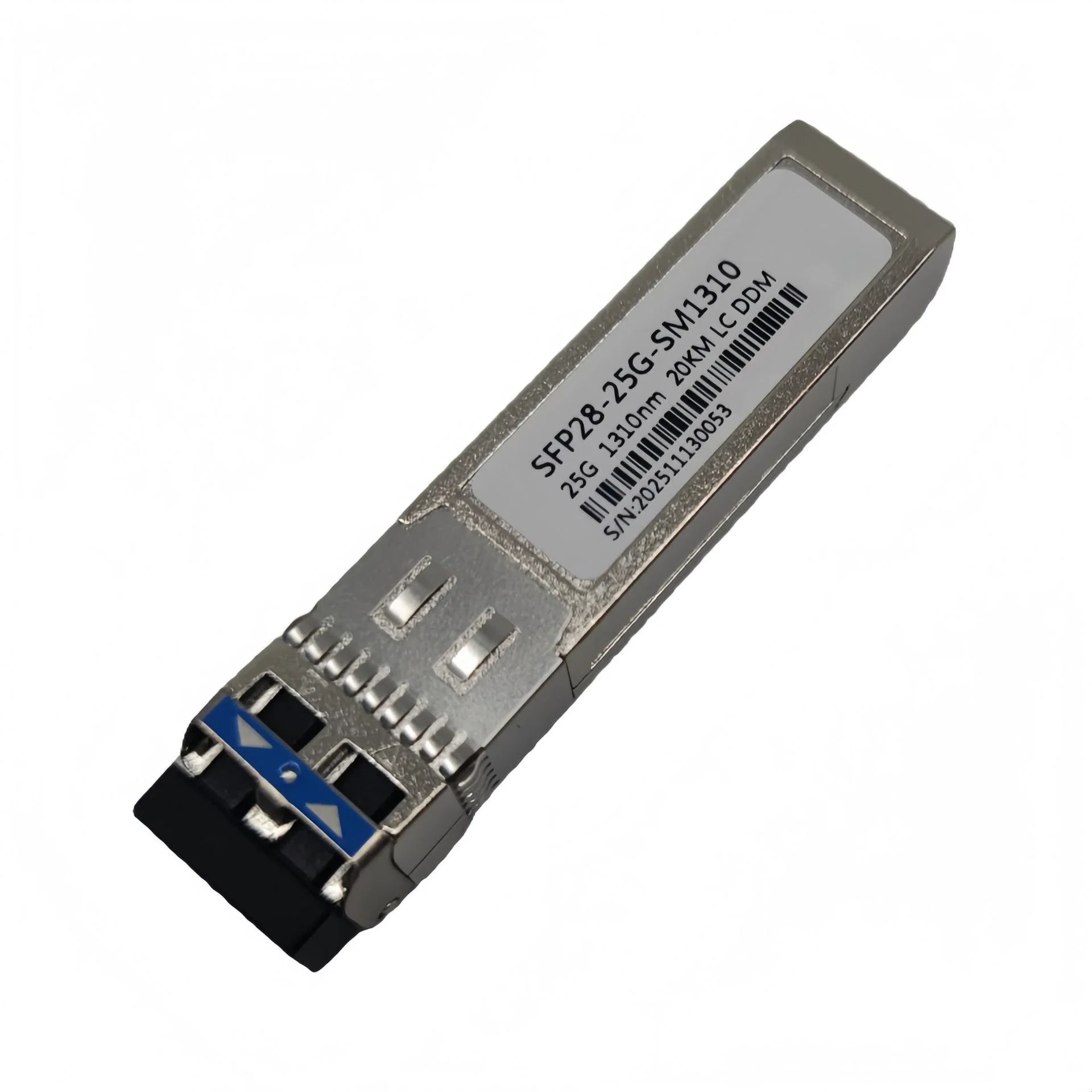

Product Model: SFP28-25G-LR-1310
Core Value: Provides a high-density, low-latency, and low-cost-per-bit backbone connectivity solution for 5G networks and cloud data centers.
SFP-25G-LR Optical Module Specifications
| Model | SFP-25G-LR | Brand | Charmlink |
| Package form | SFP28 | Fiber Type | Single Mode (SMF) |
| Transmission Rate | 25.78Gbps | Digital Diagnostic Monitoring (DDM) | Supported |
| Operating Wavelength | TRx 1310nm | Laser Type | DFB 1310nm |
| Transmission Distance | 10km | Transmit Optical Power | -4~2dBm |
| Fiber Connector | Duplex LC/UPC | Receive Sensitivity | < -12dBm |
| Compliant Standards | IEEE 802.3by, SFF-8472, SFF-8024, MSA Compliant, CPRI, eCPRI | Compatible Brands | Cisco, Huawei, H3C, MikroTik, Ruijie, Mellanox, Juniper, D-link, Intel, Dell, Inspur, etc. |
Base stations and core equipment rooms are connected via 25G-LR modules
Why is 25G SFP28 the optimal choice for operator access networks?
Data Center Standard Shift: Cloud computing has established "25G server access -> 100G uplink" as the standard for the next-generation leaf-spine architecture. All newly built and expanded cloud data centers are adopting 25G, an irreversible trend.
Optimal Cost-Effectiveness: 25G SerDes (serializers/deserializers) are currently the "sweet spot" for silicon chips, offering optimal energy efficiency and cost. Bundling four 25G channels into 100G is more economical than bundling 10G channels.
5G Network Construction: 25G optical modules are widely used in the midhaul of 5G transport networks, representing a stable and growing market for several years.
Smooth Evolution Path: The 25G physical layer is compatible with 10G, allowing for the reuse of fiber optic infrastructure and lowering the upgrade threshold.
Our Advantages
-Genuine Products: We provide official channel sourcing guarantees, eliminating compatibility and stability risks.
-Professional Testing: Each module undergoes rigorous testing before leaving the factory to ensure performance meets standards.
-Technical Support: We offer professional technical selection guidance and after-sales service.
- Sufficient Inventory: We maintain a large inventory to ensure fast delivery.
